1I-FP-DPP

1I-FP-DPP

0.00

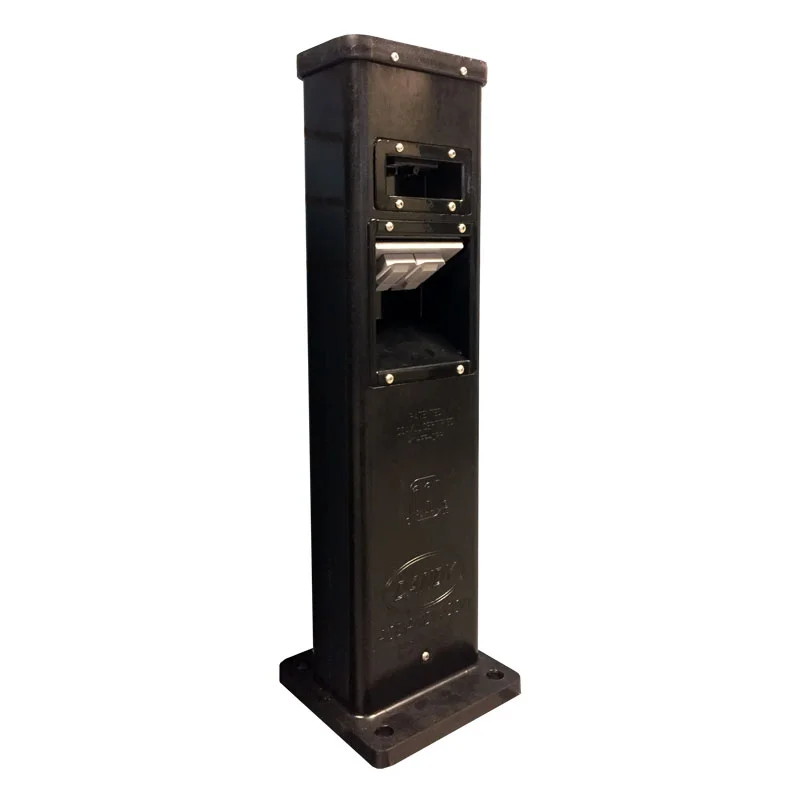

SUPER FLEX POST™ PEDESTAL

  • EEMAC 3R Enclosure

  • Suitable for wet locations

  • Specifically designed as an ultra, super duty flex power pedestal with receptacle recessed within polymer elastomeric flexible material body

  • Dandy’s patented body fitted with reverse fitted model #DR45-RS Handy Hood makes for a flush device design, preventing virtually all conceivable damage

  • Available in 14” stubby or 27” high designs

  • Base is standard plate sized 8” wide x 8” deep to fit up to existing units

  • Top cover allows for easy & quick wiring connection

  • Standard colour is black

  • Assembly is supplied & prewired with a #5-15R duplex receptacle and weatherproof cover

  • Fully listed to CSA standards

Options

  • 20A #5-20R duplex receptacle 􀌼
  • Power ‘ON’ indicator light within duplex 􀌼
  • 1/2” Galvanized anchor bolts, nuts, and washers when requested 􀌼
  • #1I-FP-DPP-X templates - sized 8” x 8” 􀌼

Notes

  • When two duplex receptacle design is selected one receptacle is on the front and one receptacle is on the rear as shown
  • Where breakers are selected they must be moulded case, not mini supplementary protectors (see CEC Rule #14-114 and #14-302)

Read more in the New Product Bulletin and Product PDF
