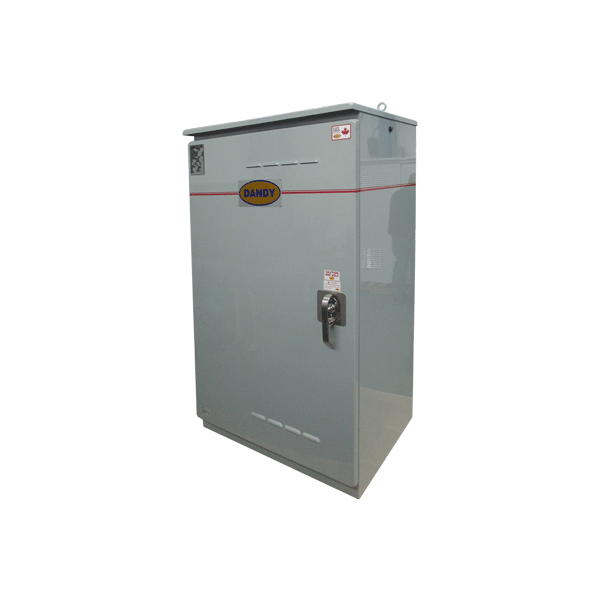

HIGHWAY POWER CENTER

  • EEMAC 3R enclosure

  • As above for control of mid capacity road lighting circuits three phase 600V applications and when separate control of multiple contactors are required along with further continuous on power circuits

  • Space for 7 jaw meter socket (cold metered)

  • Service entrance rated 3 pole main breaker Siemens complete with padlocking device

  • HID lighting rated contactors - PEC is flush side mounted

  • Siemens P1 bolt in style panel complete with BQD6 style breakers

  • CDP section complete with multiple contactors, control 250VA transformer and optional control HOA selector, GFI duplex and service light/switch (separate 6A mini breaker for control and duplex/light)

Option

  • Back to back compact power/unit substation - consult factory

 Read more in the Product PDF
