A4-DHP

A4-DHP

0.00

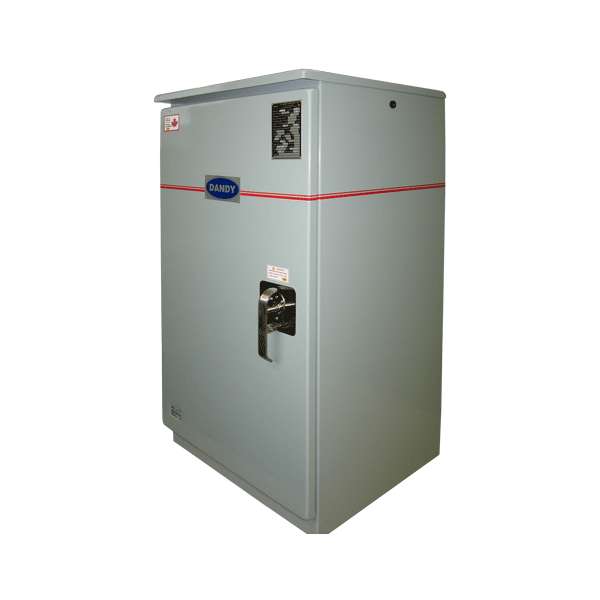

HIGHWAY POWER CENTER

  • EEMAC 3R enclosure - compact, heavy duty, deluxe design
  • Typically used for road lighting, traffic intersections or parks where bolt in compact power distribution complete with PEC load side multiple contactor control is required. Optional exterior mounted utility meter socket
  • EEMAC 4X construction allows for wash down as required in roadway applications. Marine grade aluminum - corrosion resistant
  • Super durable ASA 61 grey powder coat finish
  • Fits up to armtec #4-0046 and HO #MK100 precast elevated bases for easy installation and durability. Precast bases have ample room for cable installation, reduce chance of settlement and raised cabinet height
  • Pedestal mount style enclosure complete with open bottom and 4" snow kick - no flange to decay or protruding bolts. Door has 3 point stainless steel handle
  • Service entrance rated main breaker section 10kAIC

OPTION

  • 316 stainless steel assembly

NOTE

  • Available in 60" when custom ordered - consult factory
  • Available in 3 phase - alter 120/240V to 120/208V
  • Specify quantity & size of contactors & branch circuit breakers at time of order

Read more in the Product PDF
