PDC-G5

PDC-G5

0.00

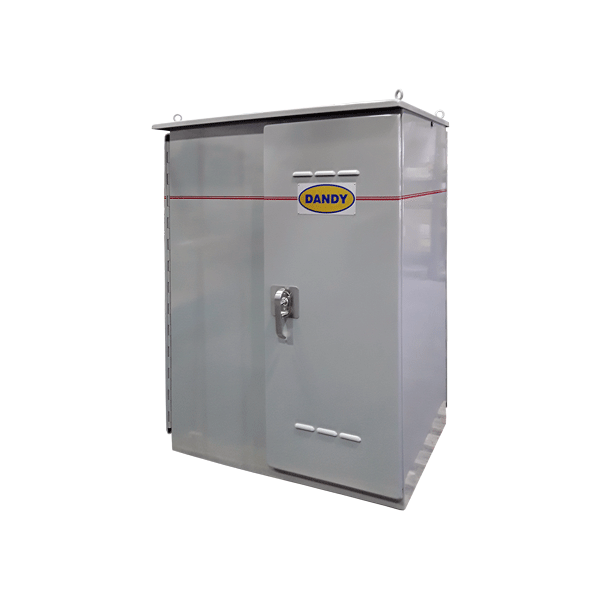

WEATHERPROOF MAIN DISTRIBUTION CENTER

  • EEMAC 3R enclosure

  • Specifically designed as an extremely compact, heavy duty, easy to install, service entrance rated power distribution center complete with CT/PT section, distribution CDP, main breaker and optional load terminal sections to accommodate large size conductors to small breaker lugs for voltage drop consideration.

  • Pad mount open bottom style complete with 3" bottom flange turned inward

  • Separate hinged exterior doors complete with individual inner doors

  • 3 Point padlockable exterior handles

  • Two lifting hooks on top

  • 4" lower snow kick

  • Safety soft, machine formed, cross-brake style roof for improved drainage

  • ASA 61 grey powder coat finish

Options

  • 7" or 10" terminal section complete with adaptor terminals - specify quantity at time of order

  • Main fuses - specify size and type

  • circuit breaker main

NOTES

  • Consult factory for quantity of circuits (will vary depending on type of circuit breaker selected). Height may vary to 72"

  • Consult local utility for CT space approval

Read more in the Product PDF
