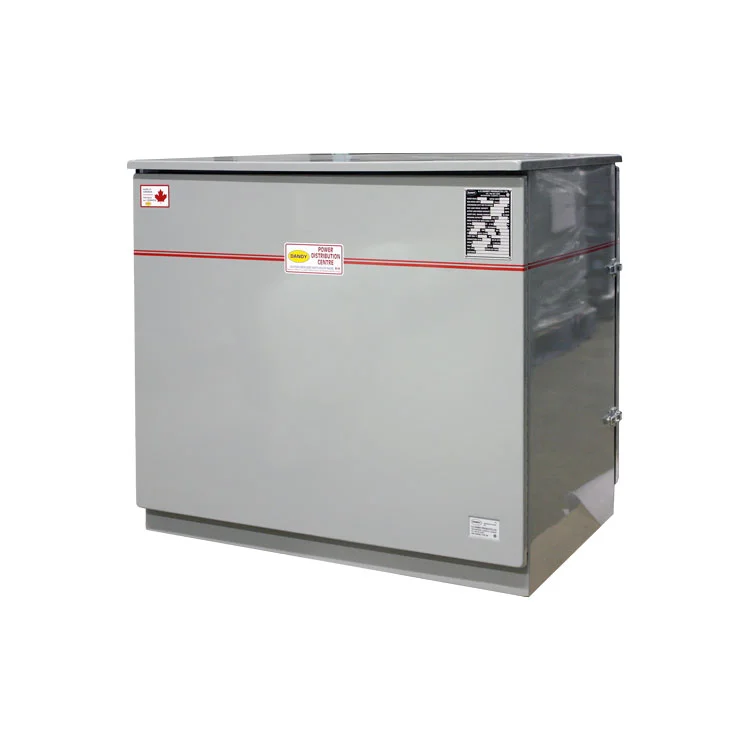

UTILITY JOINT USE POWER PEDESTAL

  • EEMAC 3R enclosure

  • Specifically designed as a SE rated main breaker with multiple load terminals for underground distribution, joint use power, telephone and TV enclosure ex. condominium sites (see CEC 14-100-G)

  • Fits directly up to Armtec #4-0045 precast base

  • Rainproof and sleet resistant for outdoor use

  • Steel welded construction

  • ASA 61 grey powder coat finish

  • Pedestal style mounted - open bottom 2" mounting trim turned inwards

  • Service entrance MCB complete with padlock off provision

  • Line and load lugs provided and braced at 75kA minimum

  • Hinged front and rear doors complete with padlocking clasps

  • Rear TV/TEL door hinged complete with plywood backboard

  • Safety soft, machine formed driphood with cross break

  • CSA certified assembly.

Read more in the Product PDF

(Also available in compact series, sized 48" x 25" x 21" - designed to fit up to Armtec #4-0046 precast base)
