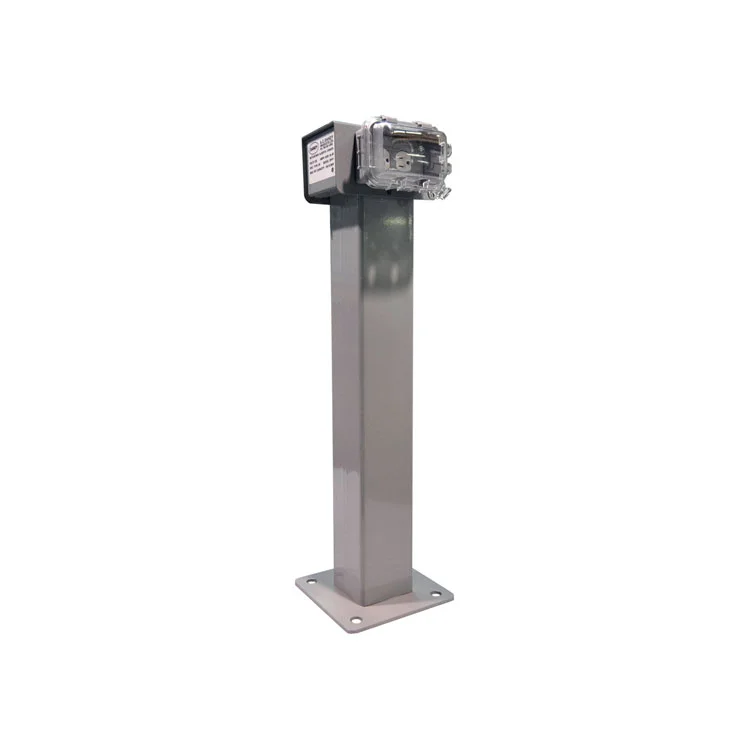

POWER PEDESTAL - HAMMER HEAD SERIES

• EEMAC 3R enclosure

• Designed as a heavy duty pedestal with device head for easy installation

• Standard ASA 61 grey powder coat finish

• 16 gauge galvanized material for head

• Standard overall height is 30” (including head), also available in 8" H stubby (add suffix -S after 1I-)

• 26”H or 4"H x 4”W x 4”D structural steel pedestal

  8” x 8” weld-on base plate

• Devices are horizontally fitted so self-closing cover supplies a degree of weather protection when in use

• Leviton #5320 duplex receptacle complete with weatherproof cover

• Siemens mini type circuit breakers where specified

• Grounding lug

Options

• Model #DR45-H Handy Hood complete with horizontal adaptor plate and weatherproof cover

• While-in-use receptacle cover

Read more in the Product PDF
