DUS-D-A

DUS-D-A

0.00

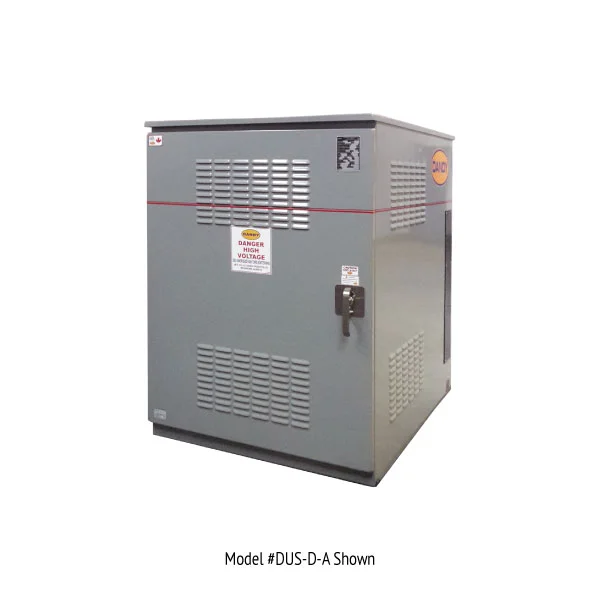

DOCK UNIT SUBSTATION DISTRIBUTION CENTER

  • EEMAC 3R enclosure

  • Designed as a weatherproof dock mount assembly complete with step down transformer and distribution breaker section

  • Oversized hood provides maximum weather resistance - low profile style

  • Safety soft, machine formed corners provide maximum safety

  • Ventilation louvers punched in sides, inner doors and shield

  • Marine grade aluminum construction - code gauge - ASA 61 grey

  • Front door and rear cover both have gasket material. Both doors have raised 2” kick space from base complete with mounting flange turned in on bottom

  • Branch breakers are bolt in style rated at 10kAIC

  • Factory prewired unit substation distribution

  • Fully CSA approved assembly

Options

  • Primary circuit breaker for enhanced protection TV/TEL cabinet on side

  • Various powder coat colours including custom

Notes

  • Specify quantity and size of branch circuit breakers

  • Specify incoming feeder size and quantity of cables to ensure terminal lugs are adequate

  • Available with a fused primary disconnect

Read more in the Product PDF
