CCP-MS

CCP-MS

0.00

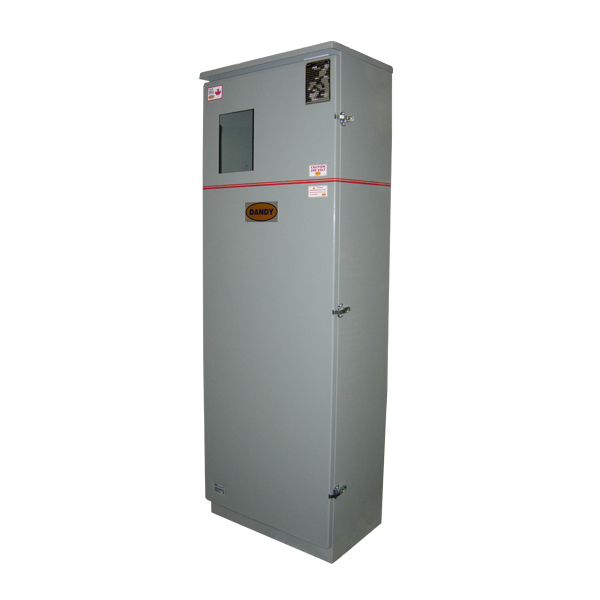

METER & MAIN SERVICE POWER DISTRIBUTION CENTER

  • EEMAC 3R enclosure

  • Specifically designed as a standalone utility style meter socket/service entrance rated distribution center for locations such as parks, etc. where economical meter main service style weatherproof distribution is required and assembly is to be able to be locked with utility meter inside for enhanced vandal protection

  • Pad mount style open bottom

  • Code gauge metal construction - ASA 61 grey

  • Full rear removable backpan

  • Hinged door complete with two padlockable clasps

  • Siemens MCB - SE rated complete with kWHR meter socket

  • Meter socket is micro #BS2L-BC for 1PH or #PL27-7JAW for 3PH (sized 20" tall) c/w 3" KO, lugged for (6) 250MCM Al/Cu and 200A rated

  • Cabinet is sized to meet meter height requirements when installed on pour in place concrete pad 4" high for suggested meter cabinet height of 1.5 to 1.8m (60 - 70")

  • Safety soft, machine formed corners on roof and doors

  • Cross-brake style roof for improved drainage complete with 2" overhanging roof type driphood and two lifting eyes

  • 4" lower snow kick

NOTES

  • Available with CDP branch circuit panel (see MS Series)

  • See model #A6-DHP for assemblies to fit precast base
